Ref. APUXLL

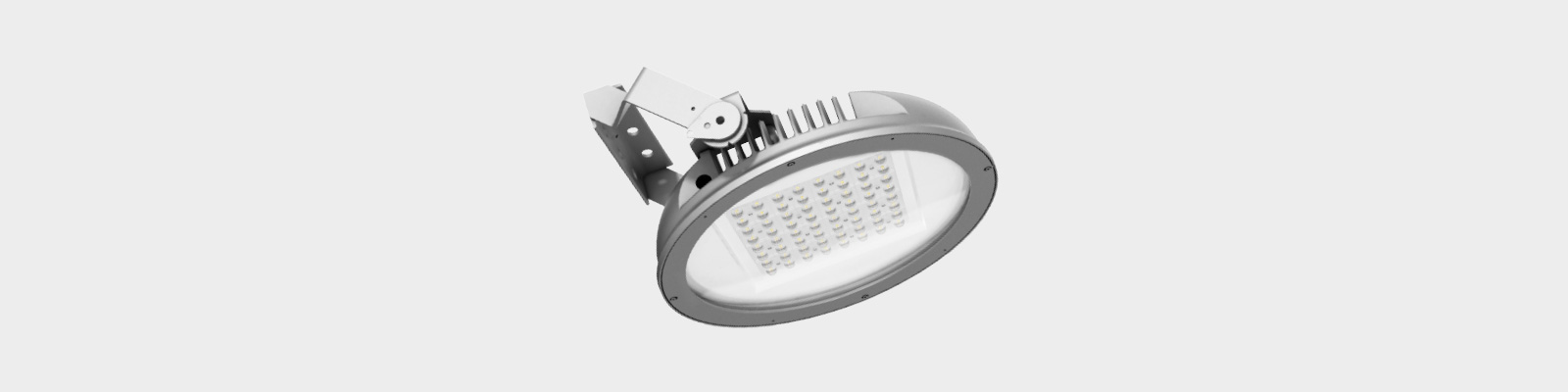

UFO XL LED Projector
Body
High pressure die-cast aluminum. 4-mm tempered glass.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 1 format (64 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired onto the luminaire structure. Class II.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
-
Light source
LED: 100-150 W
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.
Mounting Height
6 - 18 m.
Attachment
Painted steel post top mounting.
Adjustable
Adjustable luminaire with tilt range from -90º to 90º from center point.
High pressure die-cast aluminum. 4-mm tempered glass.
Screws
Stainless steel bolts.
Optic bloc
NOVATILUX module in 1 format (64 LEDs). Consult for color temperatures and light distributions.
Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired onto the luminaire structure. Class II.
Regulation
Control system compatible with: PWM - 0-10V - R adjustable.
Flow reduction
-
Light source
LED: 100-150 W
Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 color.
Mounting Height
6 - 18 m.
Attachment
Painted steel post top mounting.
Adjustable
Adjustable luminaire with tilt range from -90º to 90º from center point.

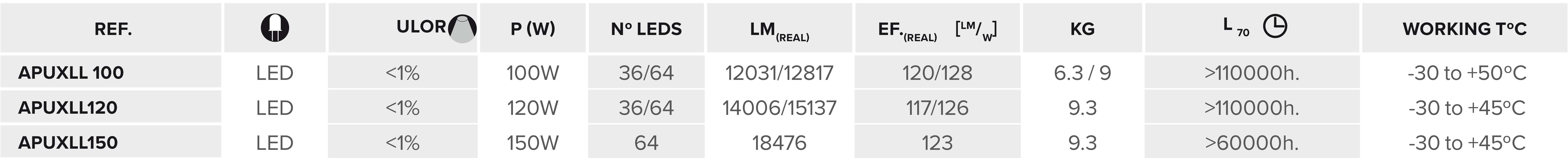

TECHNICAL DATA

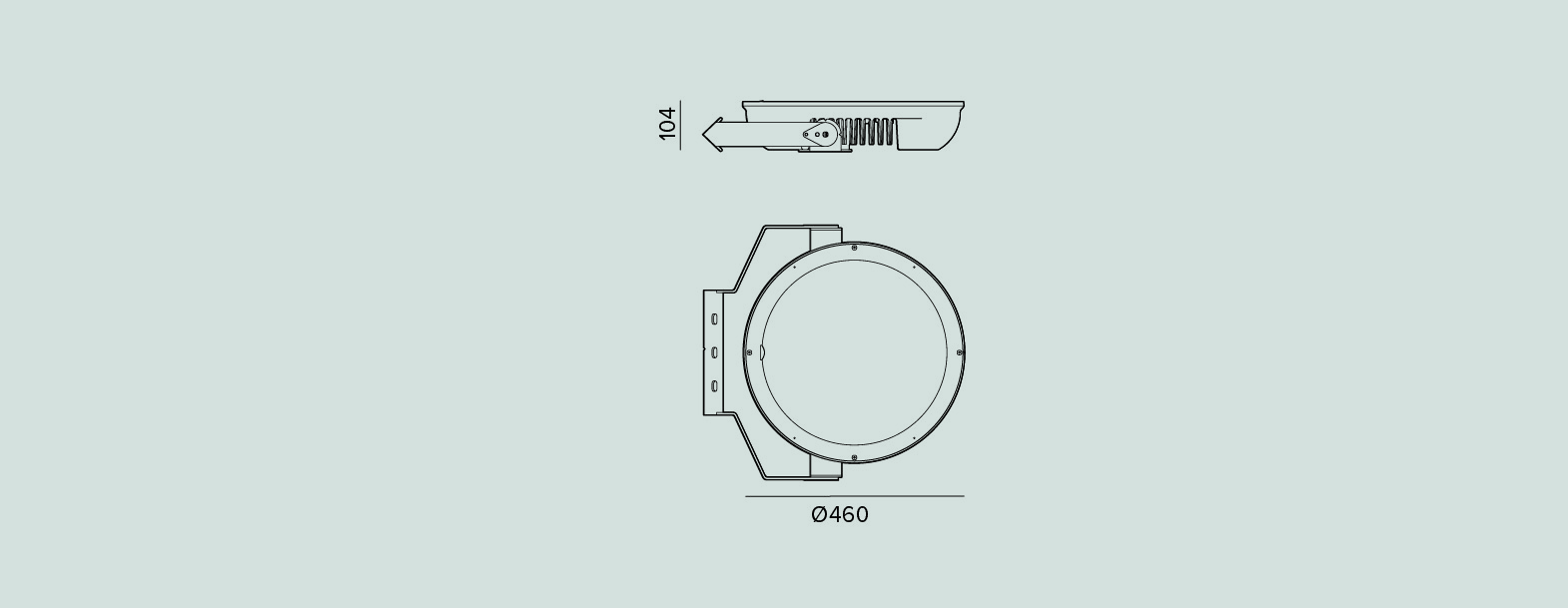

Dimensions
Downloads
Certifications
- Certificate European Conformity
- Certificate E+
- Certificate RoHS
- RAEE Certificate
Specifications
-
-
-
- Sustainable efficiency
- FHS
- CRI
Regulations
- IK10
- IP65
- Ground
- Class II
- IP65
Locations
Colors
- RAL 9007

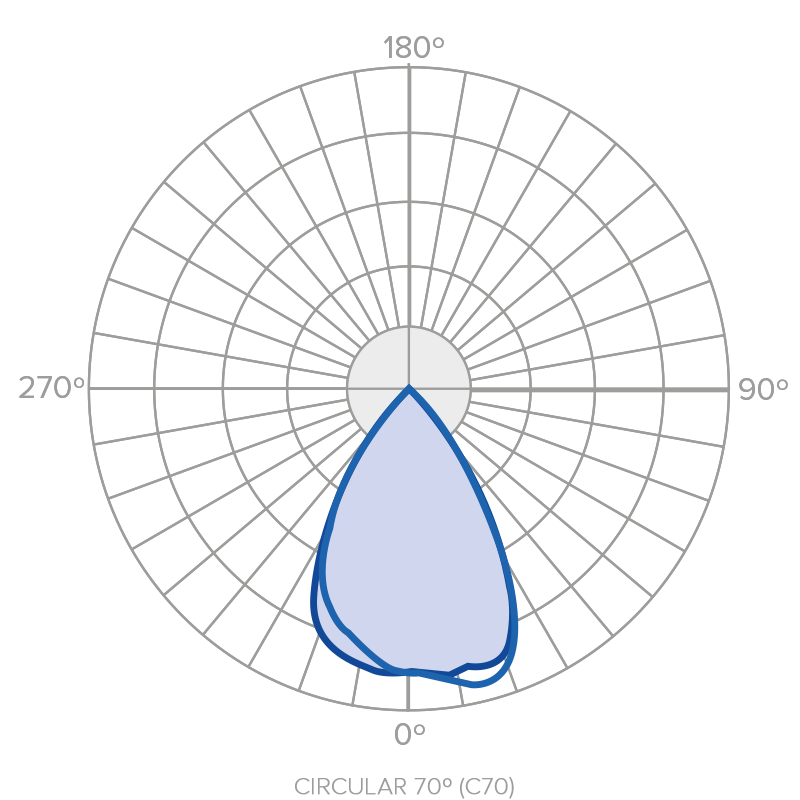

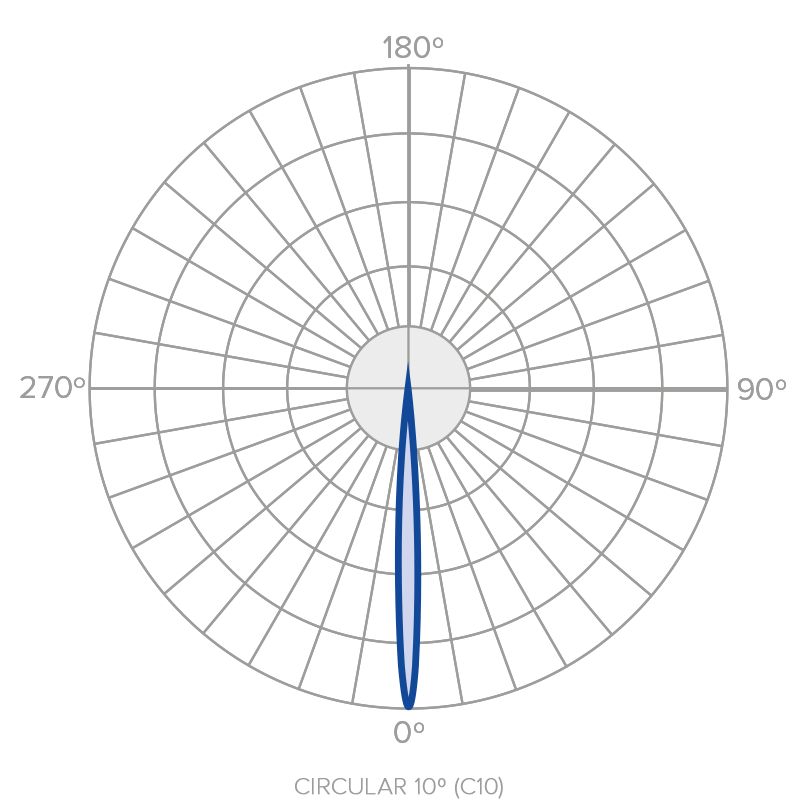

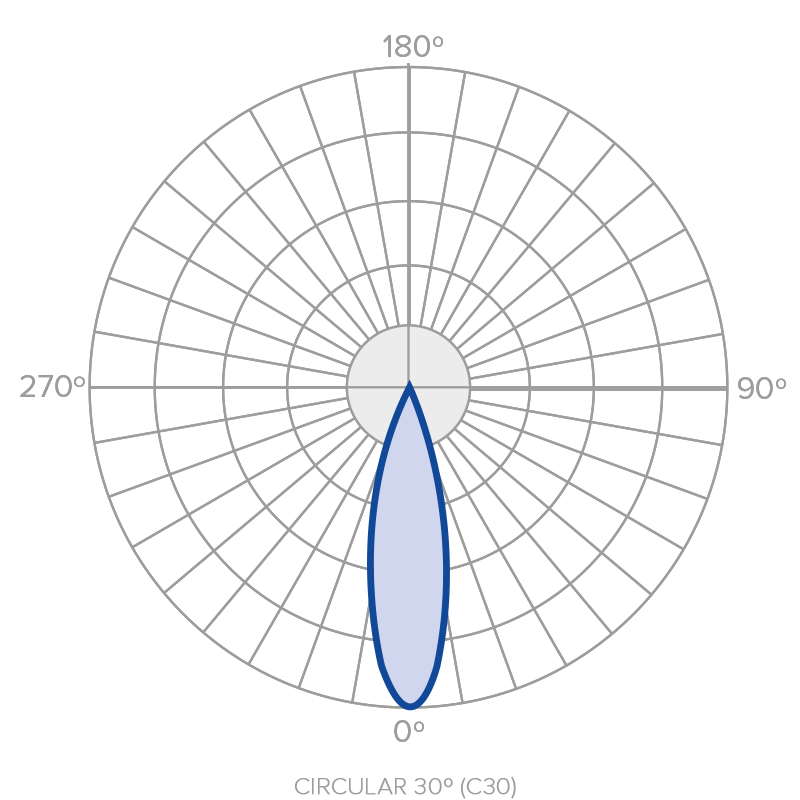

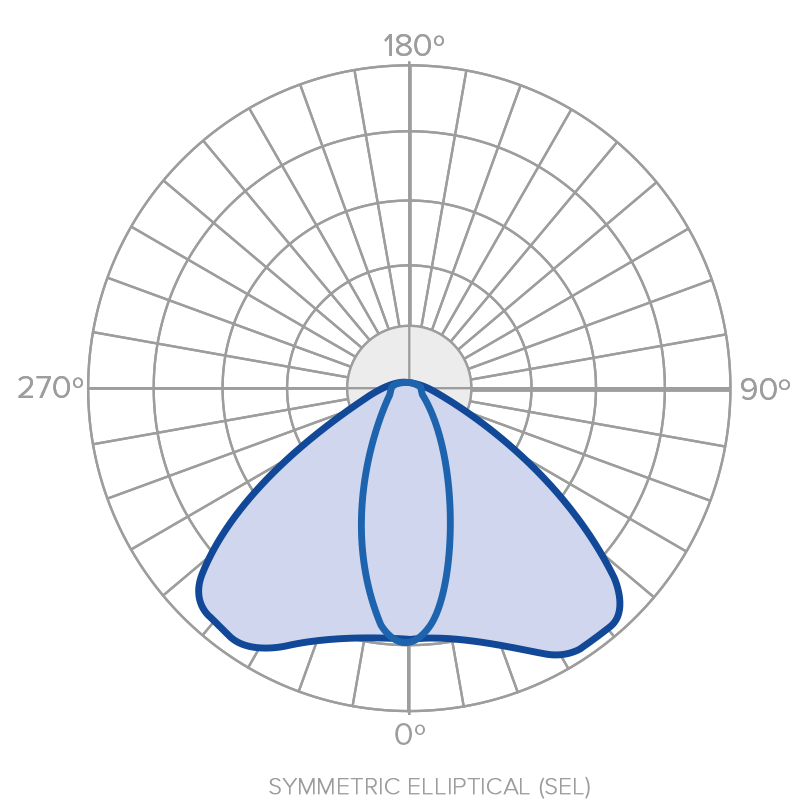

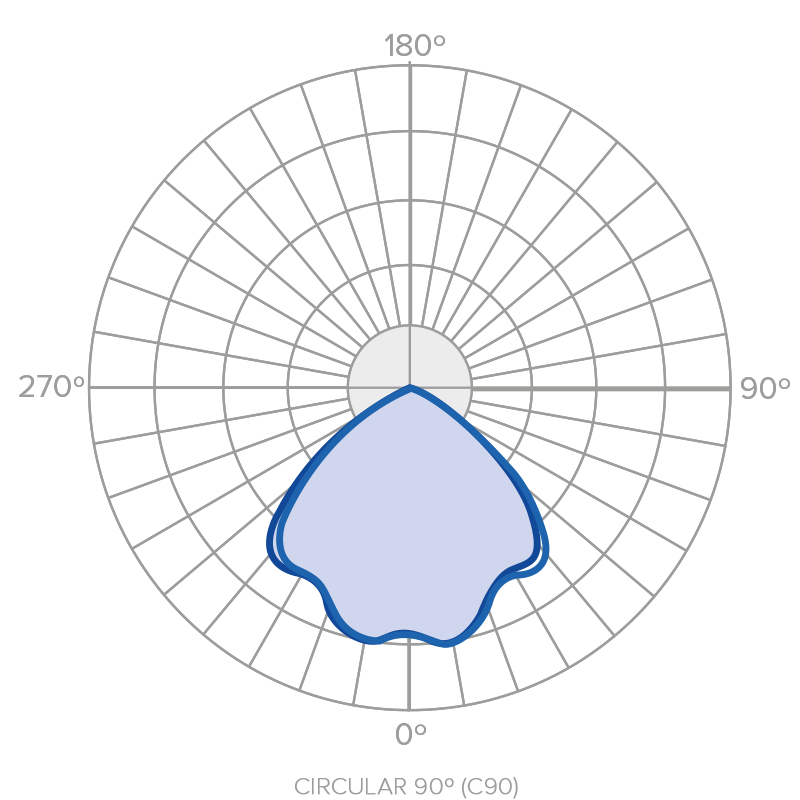

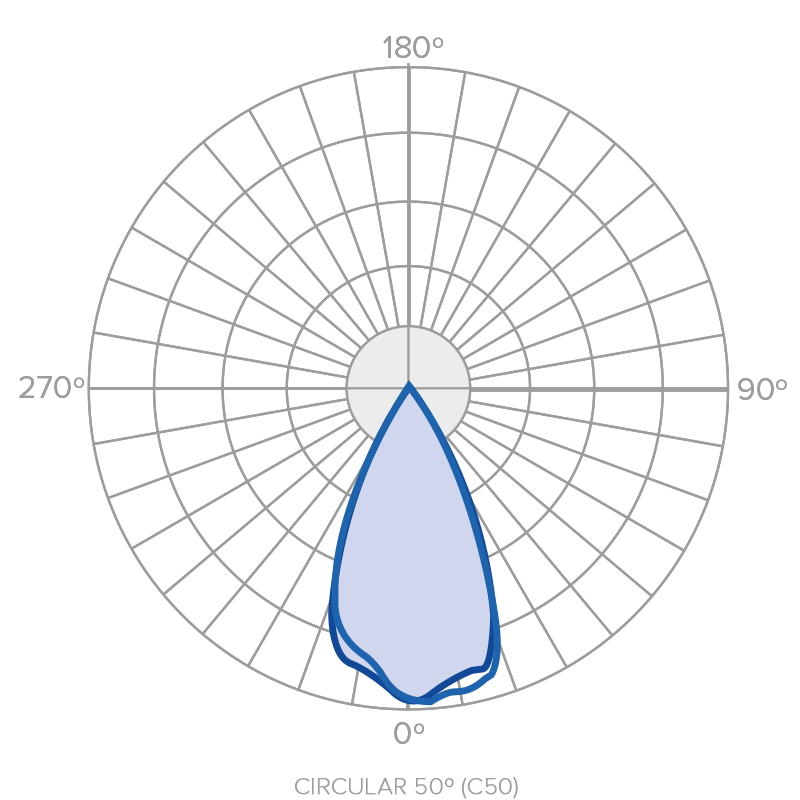

Photometry
Color temperatures
- Amber
- 3000K
- 4000K
- 5000K
