Ref. ALBL

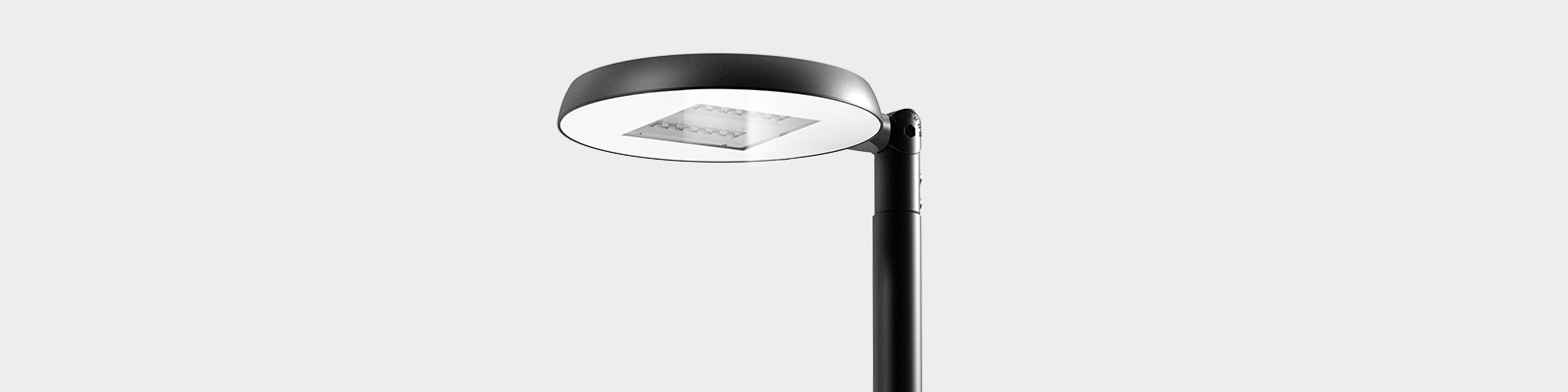

Berna Luminaire

Body
High pressure die-cast aluminum. 5-mm tempered glass.

Screws
Stainless steel bolts.

Optic bloc
NOVATILUX module in 3 formats (16, 24 or 36 LEDs). Consult for color temperatures and light distributions.

Electronic equipment
Constant current adjustable driver. Incorporated inside the luminaire, pre-wired on galvanized steel plate. Class I or II. 20kA surge protector.

Regulation
Control system compatible with: PWM - 0-10V - R adjustable.

Flow reduction
Flow reduction options:

-Double level with line driver or programmable timer.

-Multi-level with re-programmable timer.

-Remote management.

Light source
LED: 30-80 W

Finishing
Polyester powder paint coating, electrostatically sprayed and oven sublimated. Corrosion resistant. RAL 9007 and RAL 9005 colors.

Mounting Height
4 - 10 m.

Attachment
Side or top: Ø60 mm.

Adjustable
Adjustable luminaire with tilt range from 0º to 90º from center point.
